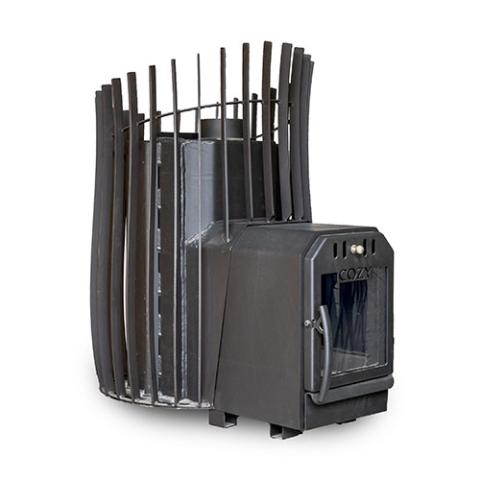

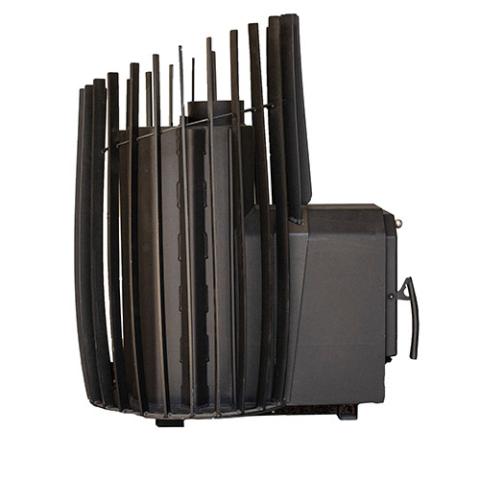

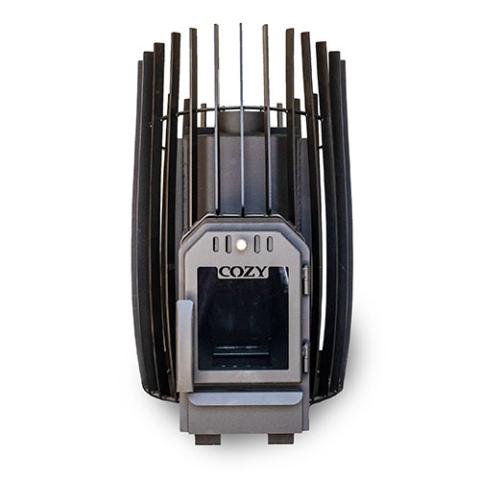

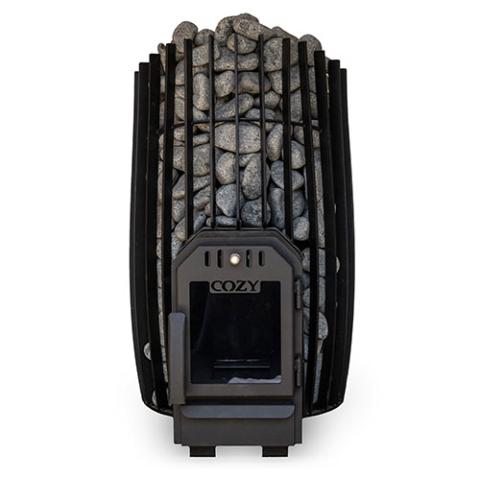

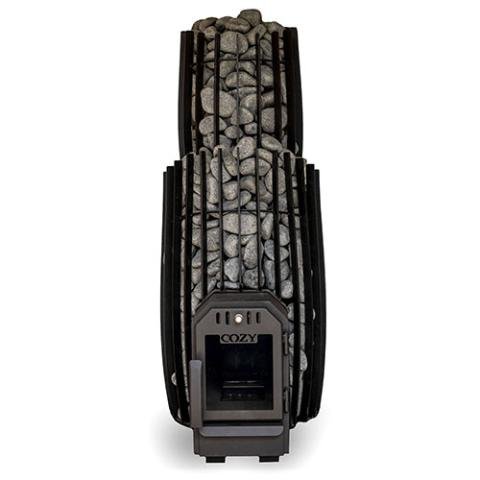

Cozy Heat SW Thru-Wall 12kw Sauna Stove

COZY has taken the craft of building a wood-fired sauna stove to a higher level. The SW-TW’s convenient through-the-wall design lets you feed the firebox from outside your sauna so you don’t need to bring wood into the room.

Cozy Heat’s SW-TW wood-burning sauna stoves are made in Estonia, where sauna bathing is a way of life. Designed for performance and durability and strength. The part of the wood-burning heater that must be the strongest, the flame cutter, is made of sturdy, 5mm-thick stainless steel making COZY heaters extremely robust.

Wood-fired sauna stoves produce a mild and long-lasting heat and are designed for ladling water over hot stones to create the most satisfying steam sauna.

Experience the epitome of comfort and style with the Cozy Heat SW-TW wood stove.

Features

• Wood-burning
• Steel Construction
• Smoke gases are 6x cleaner
• German BIMSCH certificate
• Stove utilizes 25%-40% less fuel than comparable sauna stoves
• Boasts minimal safety distances
• Mild and long-lasting heat
• Floor mount thru-wall
• Sauna room sizes:
  • 18kW - 318 to 636 cu.ft.

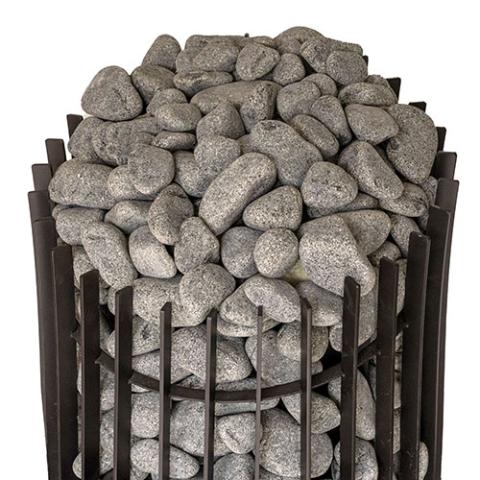

• Stone Requirements:
  • 18kW - minimum of 353lbs of stones

    • Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).
• 2-Year Warranty
• Designed and engineered in Estonia

Includes

• Outer frame of the heater
• Chimney pipe
• Heater body
• Cleaning hatch
• Heater door with glass
• Ash box
• Installation and operation manual
• 2-Year Warranty

Specifications

• Model: Cozy SW-Thru-Wall 18

• Kilowatt Rating: 18kW

• Primary Fuel: Wood

• Maximum Firewood Length: 15.74" (400mm)

• Diameter of Firewood: 3.14" to 4.72" (80mm-120mm)

• Minimum Cubic Feet: 317 Cu. Ft.

• Maximum Cubic Feet: 635 Cu. Ft.

• Minimum Room Height: 82" (2096mm)

• Flue Connection Location: Top

• Heater Weight: 236 lbs

• Shipping Weight with Sauna Stones: 633 lbs

• Safety Distance Front to Back: 60.22" (1530mm)

• Safety Distance Right to Left: 40.54" (1030mm)

• Stove Depth: 31.49" (800 mm)

• Stove Width: 21.65" (550 mm)

• Stove Height: 34.25" (870 mm)

Shipping

The weight or packaging of this product requires delivery by special appointment, and on a wooden pallet.

The driver is responsible for curbside delivery “only” and will lower the items to ground level.

Prior to shipping this product, we contact customers to share shipment details and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses.

Our goal is to ensure your project success.

Technical

Cozy Heat Manual 2024.pdf
